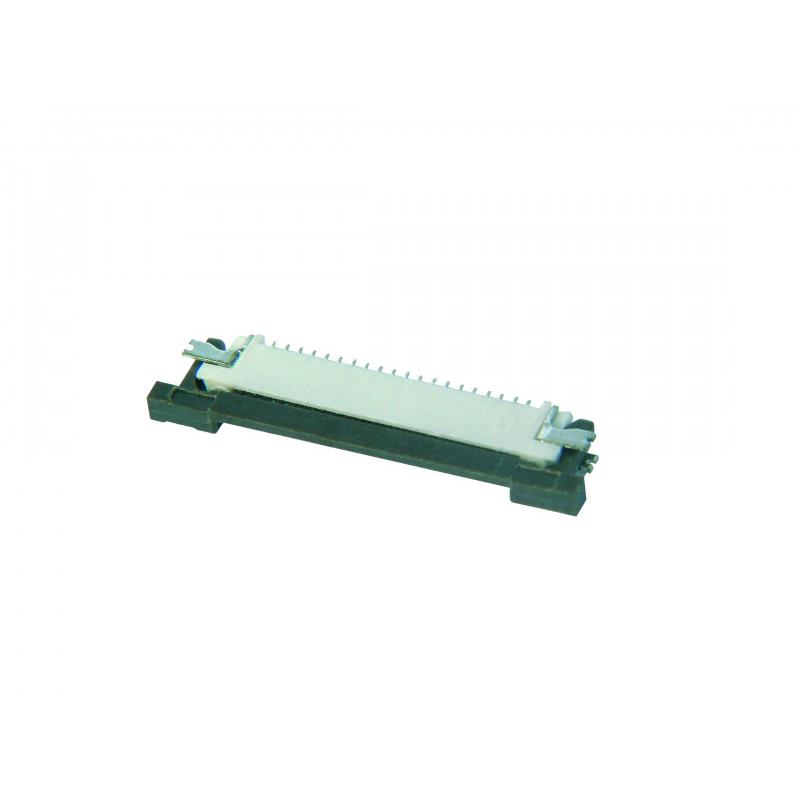

Technical Details

• Features Solder Retention, Zero Insertion Force (ZIF)
• Contact Finish Tin
• Current Rating (Amps) 0.4A
• Mounting Type Surface Mount, Right Angle
• Number of Positions 9
• Pitch 0.020" (0.50mm)
• Termination Solder
• Height Above Board 0.047" (1.20mm)
• Locking Feature Slide Lock
• Material Flammability Rating UL94 V-0
• Actuator Material Polyamide (PA6T), Nylon 6T, Glass Filled
• Contact Material Phosphor Bronze
• FFC, FCB Thickness 0.30mm
• Housing Material Polyamide (PA6T), Nylon 6T, Glass Filled
• Cable End Type Straight
• Housing Color Natural
• Actuator Color Black
• Flat Flex Type FFC, FPC
• Connector/Contact Type Contacts, Bottom
